[{"SpecName":"商品名稱","Attrs":[{"AttrName":"ASUS 華碩 ROG STRIX X870-A GAMING WIFI 主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"品牌","Attrs":[{"AttrName":"ASUS華碩","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"類型","Attrs":[{"AttrName":"主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"型號","Attrs":[{"AttrName":"ROG STRIX X870-A GAMING WIFI","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU品牌","Attrs":[{"AttrName":"AMD","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU腳位","Attrs":[{"AttrName":"AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援記憶體類型","Attrs":[{"AttrName":"DDR5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最高支援記憶體頻率(MHz)","Attrs":[{"AttrName":"4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"結構規格","Attrs":[{"AttrName":"ATX","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"尺寸(長x寬)(mm)","Attrs":[{"AttrName":"305 x 244","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"特殊功能","Attrs":[{"AttrName":"創客專用","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"AMD晶片組","Attrs":[{"AttrName":"X670/AM5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體插槽數","Attrs":[{"AttrName":"4","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體通道","Attrs":[{"AttrName":"雙通道","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最大支援記憶體容量","Attrs":[{"AttrName":"65G以上","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"實際最大支援記憶體容量","Attrs":[{"AttrName":"48GB x 4 = 192GB","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"獨家功能","Attrs":[{"AttrName":"Extreme Engine Digi+
- 5K 黑金電容
華碩 Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED（處理器 [紅色]、記憶體 [黃色]、顯示卡 [白色]、開機裝置 [黃綠色])
- Q-Slot
華碩散熱方案
- M.2 散熱片 backplate
- M.2 散熱片
華碩 EZ DIY
- BIOS FlashBack™ 按鈕
- BIOS FlashBack™ 指示燈
- Clear CMOS 按鈕
- ProCool II
- 一體式 I/O 擋板
- 安全插槽
- SafeDIMM
AURA Sync
- 可定址 Gen 2 接頭","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援數量","Attrs":[{"AttrName":"1 x DisplayPort**
1 x HDMI™ port***
2 x USB4® (40Gbps) ports support USB Type-C® display outputs****
* Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA 解析度支援取決於處理器或顯示卡的解析度。有關視訊輸入和輸出設定的更多詳細資訊，請參閱使用手冊。","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援長度","Attrs":[{"AttrName":"N/A","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"擴充槽","Attrs":[{"AttrName":"AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"USB連接埠","Attrs":[{"AttrName":"Rear USB (Total 12 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"前置連接埠接頭","Attrs":[{"AttrName":"1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x 前面板音訊接頭 (AAFP)
1 x System panel connector","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"後面板連接埠","Attrs":[{"AttrName":"2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks 
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button 
1 x Clear CMOS button","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"BSMI認證碼","Attrs":[{"AttrName":"D33005","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"保固","Attrs":[{"AttrName":"原廠三年硬體有限保固","Href":"","ImgSrc":"","CssStyle":""}]}]

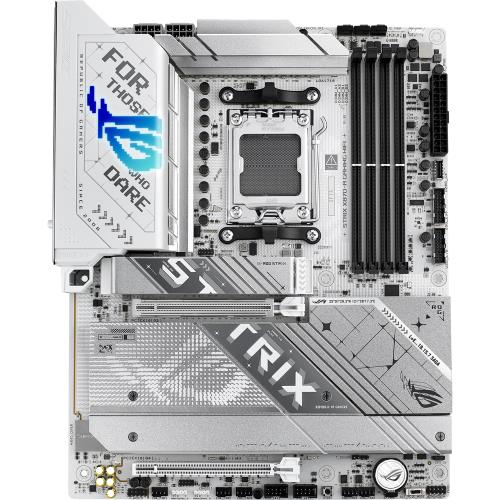

ASUS 華碩 ROG STRIX X870-A GAMING WIFI 主機板 / AM5 腳位

◎ PCIe 5 (搭 Ryzen™ 9000 & 7000 時)

◎ 支援DDR5 8000+MT/s(OC)

◎ USB 4 40Gbps
