[{"SpecName":"商品名稱","Attrs":[{"AttrName":"ASUS 華碩 PRIME B760M-F D4 主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"品牌","Attrs":[{"AttrName":"ASUS華碩","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"類型","Attrs":[{"AttrName":"主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"型號","Attrs":[{"AttrName":"PRIME B760M-F D4","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU品牌","Attrs":[{"AttrName":"Intel","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU腳位","Attrs":[{"AttrName":"Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
CPU 支援 Intel®Turbo Boost Technology 2.0 和 Intel®Turbo Boost Max Technology 3.0**
*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。
**Intel®Turbo Boost Max Technology 3.0 支援取決於 CPU 類型。","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援記憶體類型","Attrs":[{"AttrName":"DDR4","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最高支援記憶體頻率(MHz)","Attrs":[{"AttrName":"2 x DIMM, 最高可支援到64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, 無緩衝區記憶體
雙通道記憶體架構
Supports Intel® Extreme Memory Profile (XMP)
*支援的記憶體型態、速度、或支數與您使用的 CPU 有關，QVL (合格廠商清單)，請參見 www.asus.com/tw。","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"結構規格","Attrs":[{"AttrName":"MicroATX","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"尺寸(長x寬)(mm)","Attrs":[{"AttrName":"244 x 211","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"特殊功能","Attrs":[{"AttrName":"創客專用","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"Intel晶片組","Attrs":[{"AttrName":"1700腳位 B660","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體插槽數","Attrs":[{"AttrName":"2","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體通道","Attrs":[{"AttrName":"雙通道","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最大支援記憶體容量","Attrs":[{"AttrName":"33~64G","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"實際最大支援記憶體容量","Attrs":[{"AttrName":"32GB x 2 = 64GB","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"獨家功能","Attrs":[{"AttrName":"ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- Addressable Gen 2 headers","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援數量","Attrs":[{"AttrName":"1 x HDMI port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@30Hz as specified in HDMI 1.4.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援長度","Attrs":[{"AttrName":"N/A","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"擴充槽","Attrs":[{"AttrName":"Intel® 14th & 13th & 12th Gen Processors*
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"USB連接埠","Attrs":[{"AttrName":"Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)*

Front USB (Total 5 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"前置連接埠接頭","Attrs":[{"AttrName":"1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
1 x 前面板音訊接頭 (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"後面板連接埠","Attrs":[{"AttrName":"4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"BSMI認證碼","Attrs":[{"AttrName":"D33005","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"保固","Attrs":[{"AttrName":"原廠三年硬體有限保固","Href":"","ImgSrc":"","CssStyle":""}]}]

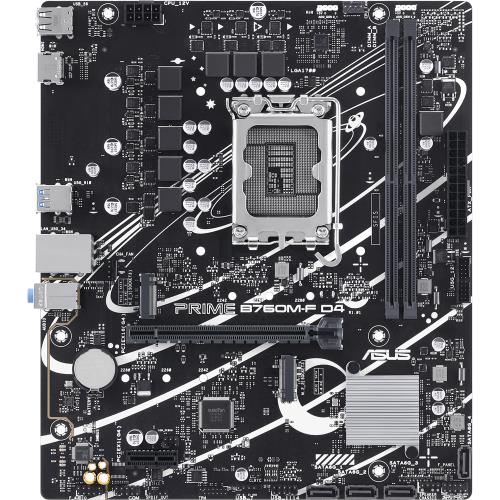

ASUS華碩 PRIME B760M-F D4 裝機板 主機板 / LGA1700 14代 / DDR4

◎ Fan Xpert

◎ PCIe 4.0 / Gigabit有線網路

◎ USB 3.2

ASUS華碩 PRIME B760M-F D4 裝機板主機板 / LGA1700 14代 / DDR4
