[{"SpecName":"商品名稱","Attrs":[{"AttrName":"ASUS 華碩 STRIX Z790-A GAMING WIFI II 主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"品牌","Attrs":[{"AttrName":"ASUS華碩","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"類型","Attrs":[{"AttrName":"主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"型號","Attrs":[{"AttrName":"STRIX Z790-A GAMING WIFI II","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU品牌","Attrs":[{"AttrName":"Intel","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU腳位","Attrs":[{"AttrName":"Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援記憶體類型","Attrs":[{"AttrName":"DDR5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最高支援記憶體頻率(MHz)","Attrs":[{"AttrName":"4 x DIMM, 最高可支援到192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz 非ECC, 無緩衝區記憶體
雙通道記憶體架構
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
OptiMem II
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"結構規格","Attrs":[{"AttrName":"ATX","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"尺寸(長x寬)(mm)","Attrs":[{"AttrName":"305 x 244","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"特殊功能","Attrs":[{"AttrName":"創客專用","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"Intel晶片組","Attrs":[{"AttrName":"1700腳位Z690","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體插槽數","Attrs":[{"AttrName":"4","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體通道","Attrs":[{"AttrName":"雙通道","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最大支援記憶體容量","Attrs":[{"AttrName":"65G以上","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"實際最大支援記憶體容量","Attrs":[{"AttrName":"48GB x 4 = 192GB","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"獨家功能","Attrs":[{"AttrName":"Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W charging
- Support: USB power delivery notification with power output wattage display
- Output: 5V/9V max. 3A, 12V max 2.5A
- Compatible with PD3.0","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援數量","Attrs":[{"AttrName":"1 x DisplayPort**
1 x HDMI® Port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援長度","Attrs":[{"AttrName":"N/A","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"擴充槽","Attrs":[{"AttrName":"Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.erals.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"USB連接埠","Attrs":[{"AttrName":"Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"前置連接埠接頭","Attrs":[{"AttrName":"1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x 前面板音訊接頭 (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"後面板連接埠","Attrs":[{"AttrName":"1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"BSMI認證碼","Attrs":[{"AttrName":"D33005","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"保固","Attrs":[{"AttrName":"原廠三年硬體有限保固","Href":"","ImgSrc":"","CssStyle":""}]}]

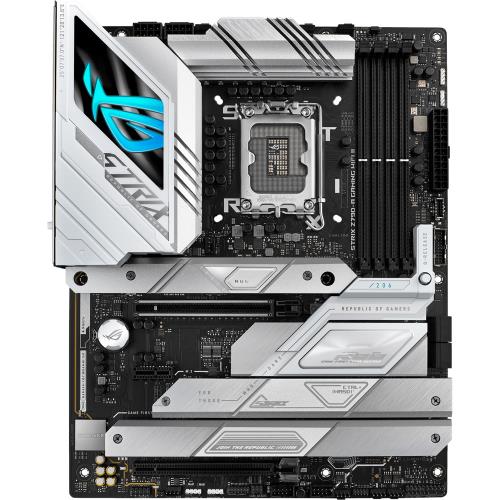

ASUS華碩 STRIX Z790-A GAMING WIFI II 主機板 / LGA1700 14代 / DDR5

◎ Fan Xpert 4 / PCIe 5.0

◎ 2.5G有線網路

◎ USB 3.2 Gen 2x2 / Thunderbolt
