[{"SpecName":"商品名稱","Attrs":[{"AttrName":"ASUS 華碩 PRIME Z890-P 主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"品牌","Attrs":[{"AttrName":"ASUS華碩","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"類型","Attrs":[{"AttrName":"主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"型號","Attrs":[{"AttrName":"PRIME Z890-P","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU品牌","Attrs":[{"AttrName":"Intel","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU腳位","Attrs":[{"AttrName":"Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU 支援 Intel®Turbo Boost Technology 2.0 和 Intel®Turbo Boost Max Technology 3.0**
*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。
**Intel®Turbo Boost Max Technology 3.0 支援取決於 CPU 類型。","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援記憶體類型","Attrs":[{"AttrName":"DDR5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最高支援記憶體頻率(MHz)","Attrs":[{"AttrName":"4 x DIMM, 最高可支援到256GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
雙通道記憶體架構
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
*支援的記憶體型態、速度、或支數與您使用的 CPU 有關，QVL (合格廠商清單)，請參見 www.asus.com/tw。
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"結構規格","Attrs":[{"AttrName":"ATX","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"尺寸(長x寬)(mm)","Attrs":[{"AttrName":"305 x 244","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"特殊功能","Attrs":[{"AttrName":"創客專用","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"Intel晶片組","Attrs":[{"AttrName":"1700腳位Z690","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體插槽數","Attrs":[{"AttrName":"4","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體通道","Attrs":[{"AttrName":"雙通道","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最大支援記憶體容量","Attrs":[{"AttrName":"65G以上","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"實際最大支援記憶體容量","Attrs":[{"AttrName":"64GB x 4 = 256GB","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"獨家功能","Attrs":[{"AttrName":"ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen2 headers","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援數量","Attrs":[{"AttrName":"1 x DisplayPort**
1 x HDMITM port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援長度","Attrs":[{"AttrName":"N/A","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"擴充槽","Attrs":[{"AttrName":"Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"USB連接埠","Attrs":[{"AttrName":"Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**

Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"前置連接埠接頭","Attrs":[{"AttrName":"1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
1 x 前面板音訊接頭 (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"後面板連接埠","Attrs":[{"AttrName":"1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"BSMI認證碼","Attrs":[{"AttrName":"D33005","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"保固","Attrs":[{"AttrName":"原廠三年硬體有限保固","Href":"","ImgSrc":"","CssStyle":""}]}]

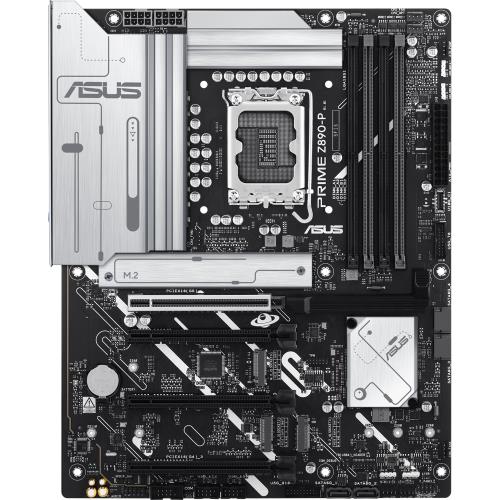

ASUS 華碩 PRIME Z890-P 主機板 / LGA1851 14代

◎ Fan Xpert 4

◎ PCIe 5.0 / 2.5 Gb 有線網路

◎ USB 20Gbps port
