[{"SpecName":"商品名稱","Attrs":[{"AttrName":"ASUS 華碩 B650M-AYW WIFI 主機板 AM5 腳位","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"品牌","Attrs":[{"AttrName":"ASUS華碩","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"類型","Attrs":[{"AttrName":"主機板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"型號","Attrs":[{"AttrName":"B650M-AYW WIFI","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU品牌","Attrs":[{"AttrName":"AMD","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援CPU腳位","Attrs":[{"AttrName":"AMD AM5 Socket Ryzen™ 9000 & 8000 & 7000 系列處理器

*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"支援記憶體類型","Attrs":[{"AttrName":"DDR5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最高支援記憶體頻率(MHz)","Attrs":[{"AttrName":"2 x DIMM, 最高可支援到 96GB, DDR5 Supports up to 8000+MT/s (OC), 無緩衝區記憶體
雙通道記憶體架構
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"結構規格","Attrs":[{"AttrName":"MicroATX","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"尺寸(長x寬)(mm)","Attrs":[{"AttrName":"244 x 221","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"特殊功能","Attrs":[{"AttrName":"區域網路","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"AMD晶片組","Attrs":[{"AttrName":"B650/AM5","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體插槽數","Attrs":[{"AttrName":"2","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"記憶體通道","Attrs":[{"AttrName":"雙通道","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"最大支援記憶體容量","Attrs":[{"AttrName":"65G以上","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"實際最大支援記憶體容量","Attrs":[{"AttrName":"48GB x 2 = 96GB","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"獨家功能","Attrs":[{"AttrName":"ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援數量","Attrs":[{"AttrName":"1 x HDMI® port*
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI® 2.1.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"顯示卡支援長度","Attrs":[{"AttrName":"N/A","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"擴充槽","Attrs":[{"AttrName":"AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"USB連接埠","Attrs":[{"AttrName":"Rear USB (Total 8 ports)
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"前置連接埠接頭","Attrs":[{"AttrName":"1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x 前面板音訊接頭 (AAFP)
1 x 系統面板","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"後面板連接埠","Attrs":[{"AttrName":"2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"BSMI認證碼","Attrs":[{"AttrName":"D33005","Href":"","ImgSrc":"","CssStyle":""}]},{"SpecName":"保固","Attrs":[{"AttrName":"原廠三年硬體有限保固","Href":"","ImgSrc":"","CssStyle":""}]}]

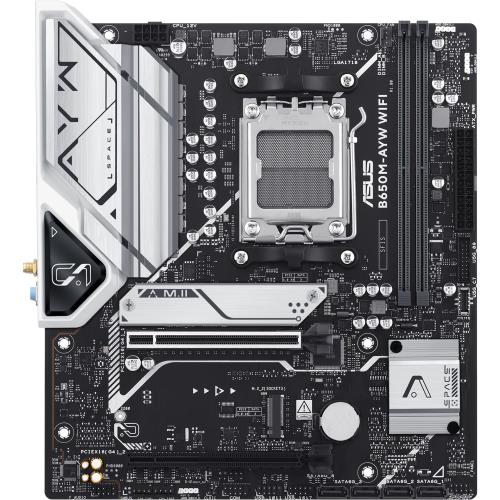

ASUS 華碩 B650M-AYW WIFI 主機板 AM5 腳位

◎ PCIe 4 / 支援DDR5 8000(OC)

◎ 2 x M.2

◎ USB 10Gbps
